found::SequentialPipeline< Input, Output, N > Class Template Reference

SequentialPipeline is composite Stage (i.e. More...

#include <pipelines.hpp>

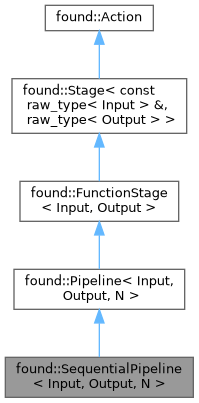

Inheritance diagram for found::SequentialPipeline< Input, Output, N >:

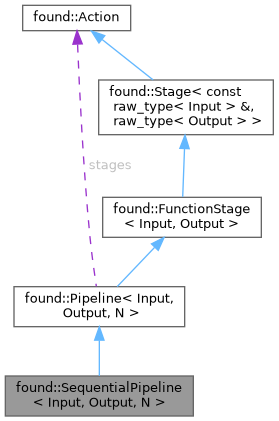

Collaboration diagram for found::SequentialPipeline< Input, Output, N >:

Public Member Functions
	SequentialPipeline ()=default
	Constructs an empty SequentialPipeline.
template<typename I , typename O >
SequentialPipeline &	AddStage (FunctionStage< I, O > &stage)
	Adds a stage to this pipeline.
template<typename I >
SequentialPipeline &	Complete (FunctionStage< I, Output > &stage)
	Adds a stage to the pipeline and marks it as the last stage, preventing further manipulation of the SequentialPipeline.
Output	Run (const Input &input) override
	Executes this SequentialPipeline.
Public Member Functions inherited from found::Pipeline< Input, Output, N >
void	DoAction () override
	Runs a Pipeline.
Public Member Functions inherited from found::FunctionStage< Input, Output >
	FunctionStage ()=default
	Constructs a new Stage.
virtual	~FunctionStage ()=default
	Destroys this.
Input &	GetResource ()
	Returns the stored input of this.
Output *&	GetProduct ()
	Returns the stored output of this.
Public Member Functions inherited from found::Stage< const raw_type< Input > &, raw_type< Output > >
virtual raw_type< Output >	Run (const raw_type< Input > & input)=0
	Runs this stage.

Private Attributes
Input *	firstResource = nullptr
	The pointer to the variable that will store the first input.
void **	lastProduct = nullptr
	A temporary variable that always points to the last Stage's product field.

Additional Inherited Members
Protected Member Functions inherited from found::Pipeline< Input, Output, N >
void	AddStageHelper (Action &stage)
	Adds a stage to this pipeline.
void	CompleteHelper (Action &stage)
	Completes a pipeline with a stage.
void	DoActionHelper ()
	Runs the entire pipeline.
Protected Attributes inherited from found::Pipeline< Input, Output, N >
Action *	stages [N]
	The stages of this.
size_t	size = 0
	The number of stages.
bool	ready = false
	Whether we're complete.
std::optional< Output >	finalProduct
	The final product. This is only sometimes used.
Protected Attributes inherited from found::FunctionStage< Input, Output >
Input	resource
	The stored input for this.
Output *	product = nullptr
	The pointer to the stored output for this.

Detailed Description

template<typename Input, typename Output, size_t N = DEFAULT_NUM_STAGES>
class found::SequentialPipeline< Input, Output, N >

SequentialPipeline is composite Stage (i.e.

A Stage that is made up of many stages). You can add 1 to many stages into a SequentialPipeline so long as the Input to the first stage is the same Input to the SequentialPipeline, and the Output to the last stage is the Output of the SequentialPipeline.

A SequentialPipeline runs by feeding the input to the first stage, taking its output and feeding it to the next stage, and so on until the last stage outputs the output.

Parameters

Input	The SequentialPipeline's Input
Output	The SequentialPipeline's Output
N	Number of stages

Precondition

Output must be able to be default constructed (i.e. output has trait Output::Output())

Member Function Documentation

AddStage()

template<typename Input , typename Output , size_t N = DEFAULT_NUM_STAGES>

template<typename I , typename O >

SequentialPipeline & found::SequentialPipeline< Input, Output, N >::AddStage ( FunctionStage< I, O > &  stage )

inline

Adds a stage to this pipeline.

Parameters

stage

The stage to add to the pipeline

Returns

this, with the new stage added (for chaining)

Exceptions

invalid_argument

iff this is the first time this method is called, and I does not match Input OR if the SequentialPipeline is already complete (aka this::Complete was called successfully)

Precondition

Iff this method has already been called, O from the last parameter must match I of the next parameter

This method is called when the number of registered stages is less than N - 1

Complete()

template<typename Input , typename Output , size_t N = DEFAULT_NUM_STAGES>

template<typename I >

SequentialPipeline & found::SequentialPipeline< Input, Output, N >::Complete ( FunctionStage< I, Output > &  stage )

inline

Adds a stage to the pipeline and marks it as the last stage, preventing further manipulation of the SequentialPipeline.

Parameters

stage

The stage to add

Returns

this, with the last stage added (to run this::Run)

Exceptions

invalid_argument

iff this is the first time this method is called, and I does not match Input OR if the SequentialPipeline is already complete (aka this::Complete was called successfully)

Precondition

This method is called when the number of registered stages is less than N

Run()

template<typename Input , typename Output , size_t N = DEFAULT_NUM_STAGES>

Output found::SequentialPipeline< Input, Output, N >::Run ( const Input &  input )

inlineoverridevirtual

Executes this SequentialPipeline.

Parameters

input

The input to this SequentialPipeline

Returns

The output of the SequentialPipeline

Note

A SequentialPipeline runs by feeding the input to the first stage, taking its output and feeding it to the next stage, and so on until the last stage outputs the output.

Precondition

The pipeline must have been completed successfully, i.e. before this::Run is called, this::Complete must have been called successfully

Implements found::Pipeline< Input, Output, N >.

---

The documentation for this class was generated from the following file:

• src/common/pipeline/pipelines.hpp
